ClearPort^TM

Passive Precision. Relentless Clarity.

ClearPort Tile

Tile is ClearPort’s revolutionary solid-state muon sensor, delivering unprecedented tracking precision in a compact, modular form. At less than 3 inches thick, Tile enables installations without bridges, heavy construction, or deep foundations. Unlike traditional systems, it requires no high voltage, no gas tubes — just a level surface and minimal site preparation.

Length3.6m / 142in

Width2m / 79in

Thickness75mm / 3in

Max. Rated Load80t

ClearPort Module

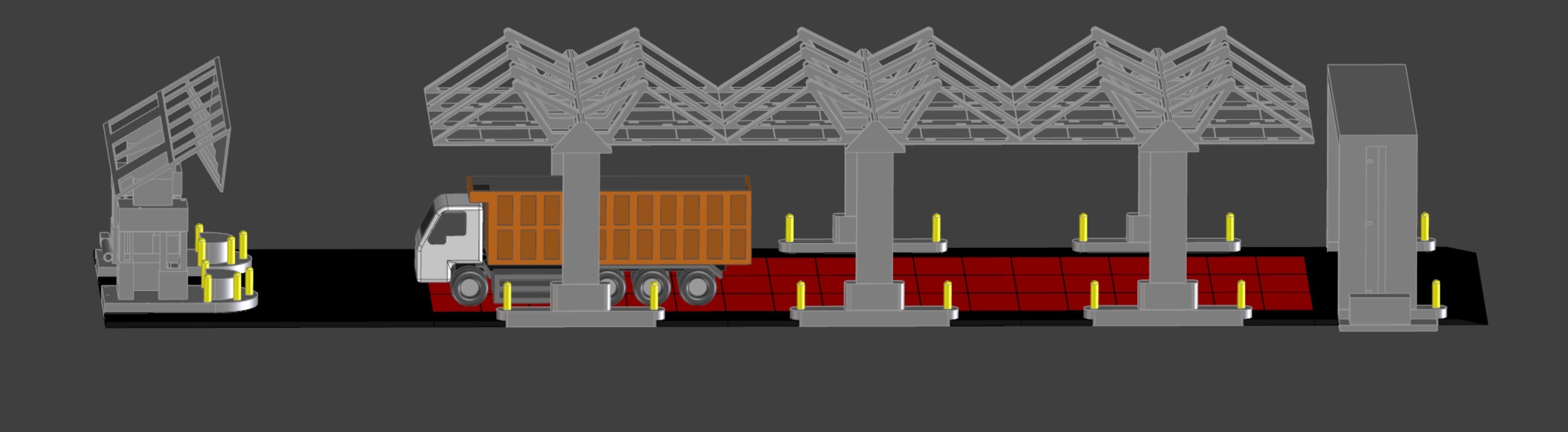

The ClearPort Module combines 18 Tiles above and 18 Tiles below the scan zone to form a complete high-resolution muon tracking system. Designed for flexibility, each Module can scan up to three vehicles simultaneously without the need for large support structures or invasive construction. Its modular architecture allows rapid deployment and scaling, adapting easily to any site or inspection need.

Length12m / 39ft

Width (incl supports)14m / 47ft

Max. Vehicle Height8.8m / 29ft

ClearPort Lane

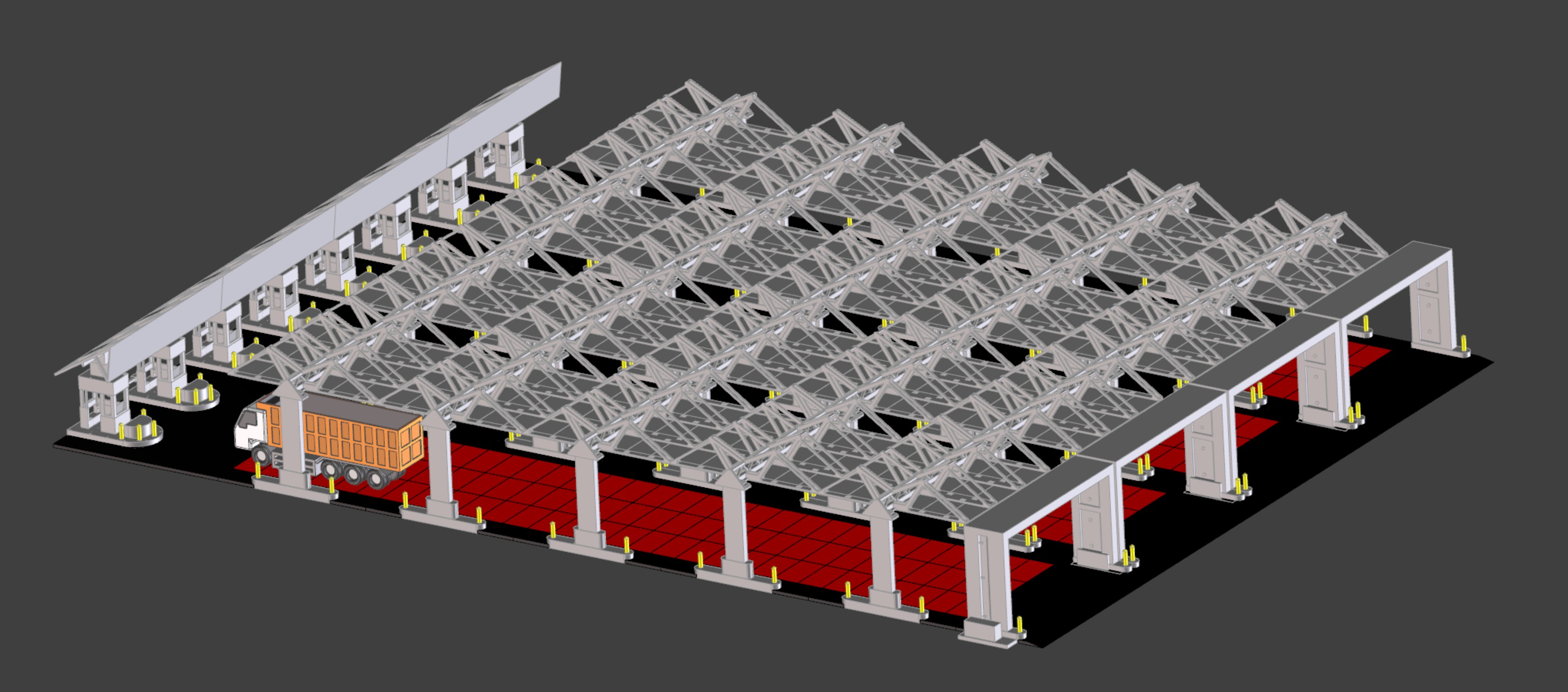

Multiple ClearPort Modules form a scalable, high-throughput scanning Lane. Designed for rapid deployment and minimal infrastructure, each Lane delivers full-vehicle muon imaging at scale — no heavy construction, no bottlenecks, no compromises.

Length40m / 130ft

Width (incl supports)14m / 47ft

Vehicle Rate (Minimum):120 vehicles/hr.

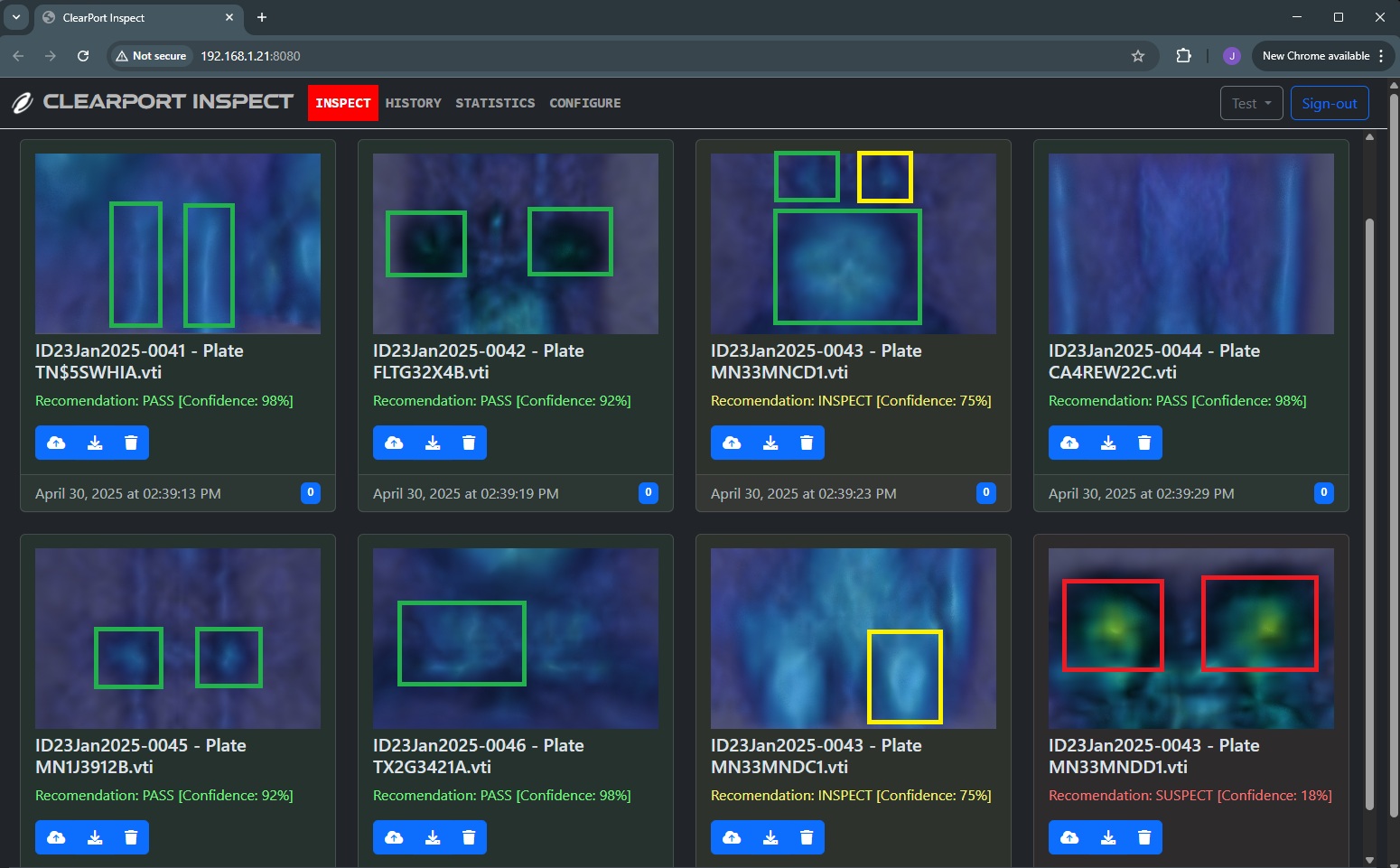

ClearPort App

The ClearPort App delivers fast, automated threat assessment through a streamlined, cross-platform interface. Designed for operational agility, it enables real-time analysis, smart decision support, and effortless integration into existing security workflows — all without the need for image manipulation.

PlatformCross-platform (Web/Desktop)

Automated AccessmentYes (w/Confidense)

Real-time DataYes

24/7 Live SupportAvailable

Integration ReadyREST, MQTT
